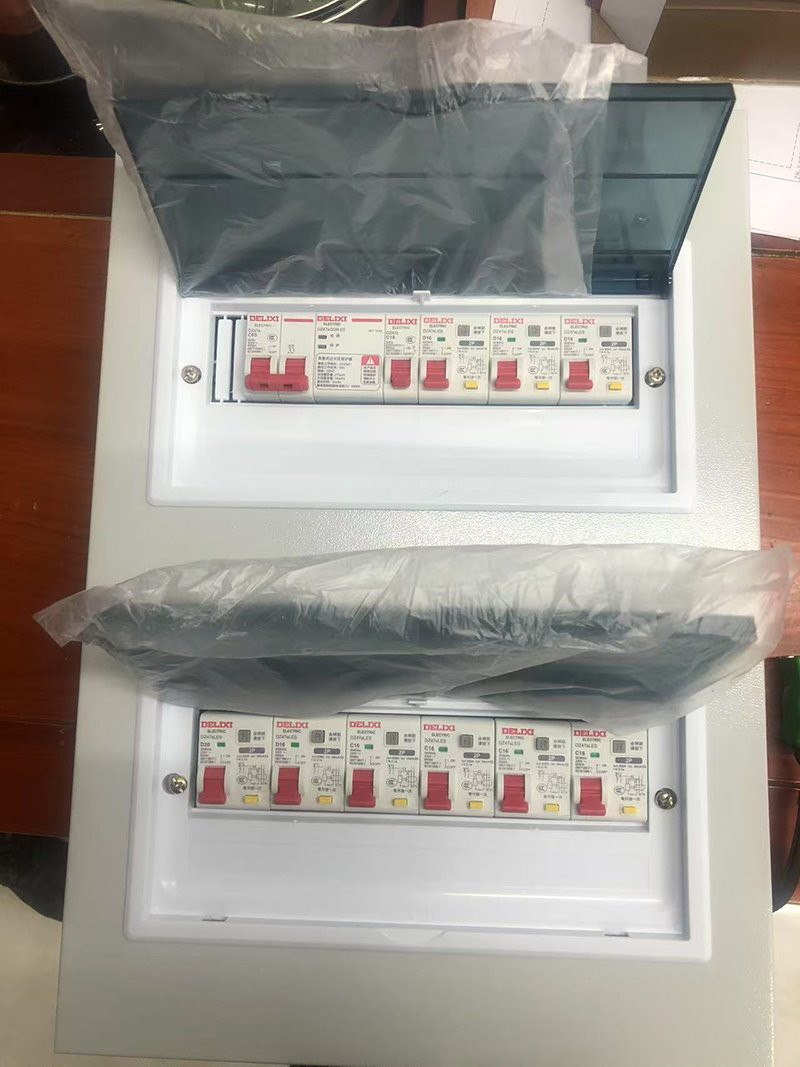

Light Mcb Box

A Light MCB Box uses modular miniature circuit breakers.
It protects lighting, sockets, and small AC units at the final level.
Rated current is ≤100A.
Number of circuits is 4 to 24 positions.
This product meets GB/T 7251.3.
The box can be recessed or surface-mounted.
The front panel looks good and matches room decoration.
Inside, we put 1P/2P/3P MCBs and RCBOs (residual current breakers).
It is widely used in homes, apartments, shops, and small offices.
Many residential projects of China Railway Construction use our Light MCB Box.

The back box uses 0.8mm hot-dip galvanized steel with rust protection.
The front panel is flame-retardant PC/ABS alloy, UL94 V0 grade, impact-resistant and UV-resistant.
Colors are white or gray, and we can customize.
The door can have a clear window or be solid.
Inside, we use a TH35 rail for modular devices, supporting up to 24 positions.
The incoming side has a copper busbar or a high-current terminal block.
The neutral and ground bars are separate. The ground bar connects to the box ground terminal.
Around the box, we have knock-out holes with protective bushings.
Our factory is 2,000 square meters with ISO9001 certification.

The advantages are flexibility and safety.
We offer 1P, 2P, 3P MCBs that you can mix freely, with blank spaces for future use.
You can add a T3 level surge protection device (SPD) and a backup protector against lightning.
You can also choose a smart WiFi breaker for remote on/off and energy monitoring with your phone.
The front can have custom silk-printed circuit labels like "Living Room Light" or "Kitchen Outlet."
This product has 3C certification.
