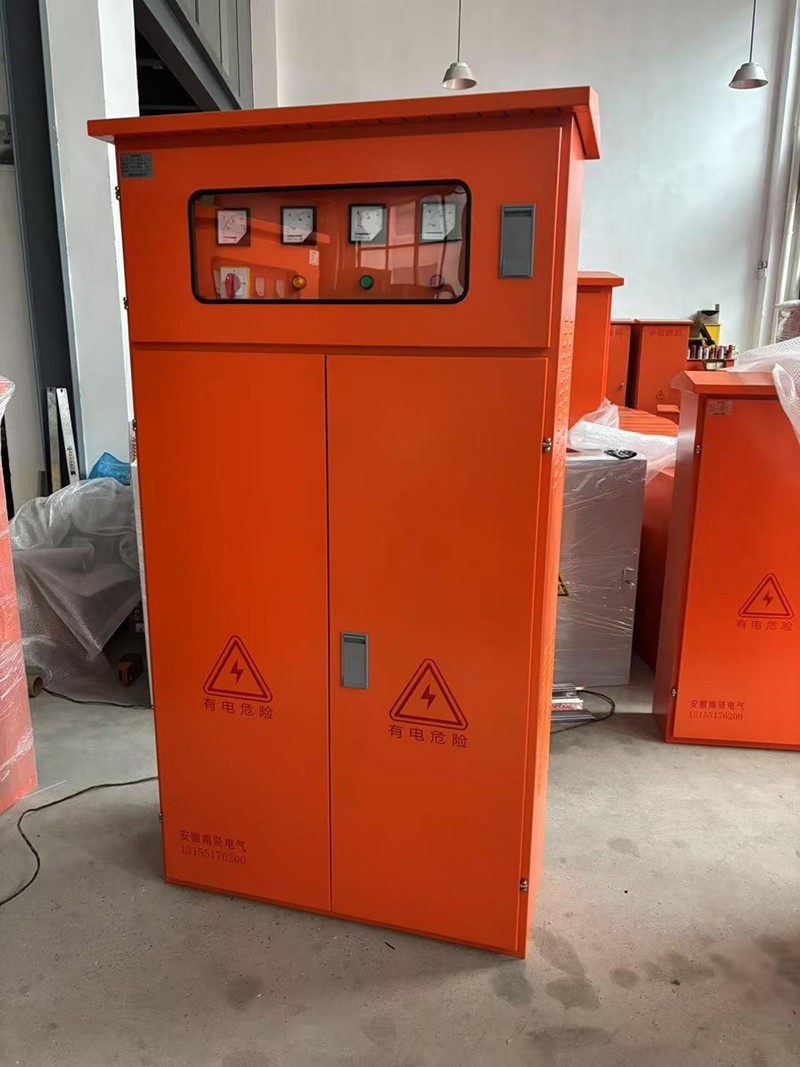

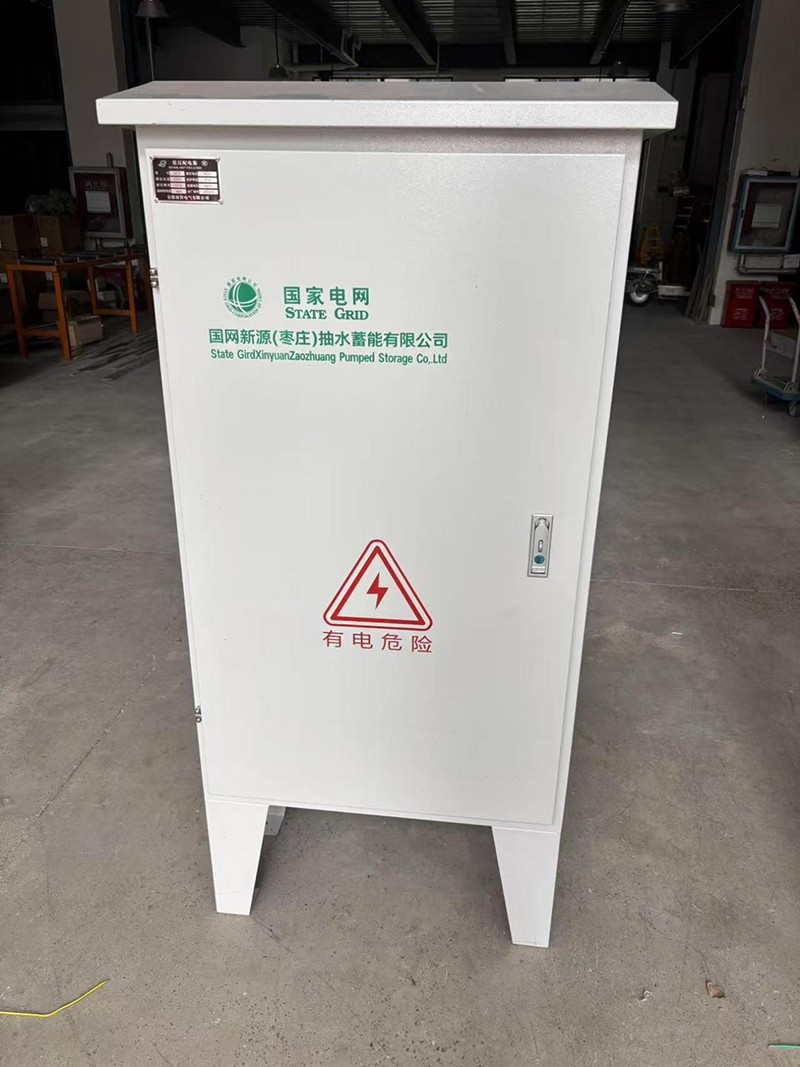

Outdoor Distribution Panel

An Outdoor Distribution Panel has protection rating IP54 to IP66.
It resists UV aging and high/low temperatures. Working range is -30℃ to +60℃.
Rated current is ≤250A.
Number of circuits is 4 to 16.
The panel can be pole-mounted or floor-standing.
This product meets GB/T 7251.5 and IEC 61439-5.
It is widely used in municipal works, traffic signals, agricultural irrigation, and remote monitoring stations.
Road and highway projects of China Railway and China Railway Construction use our Outdoor Distribution Panel.

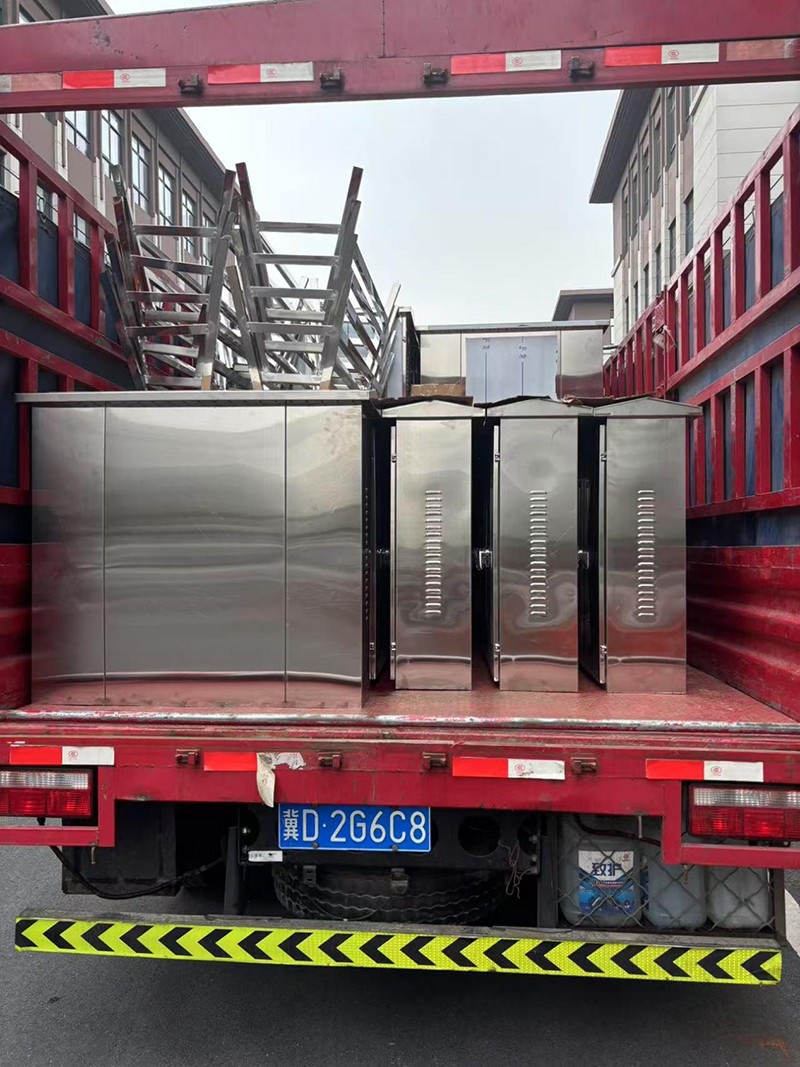

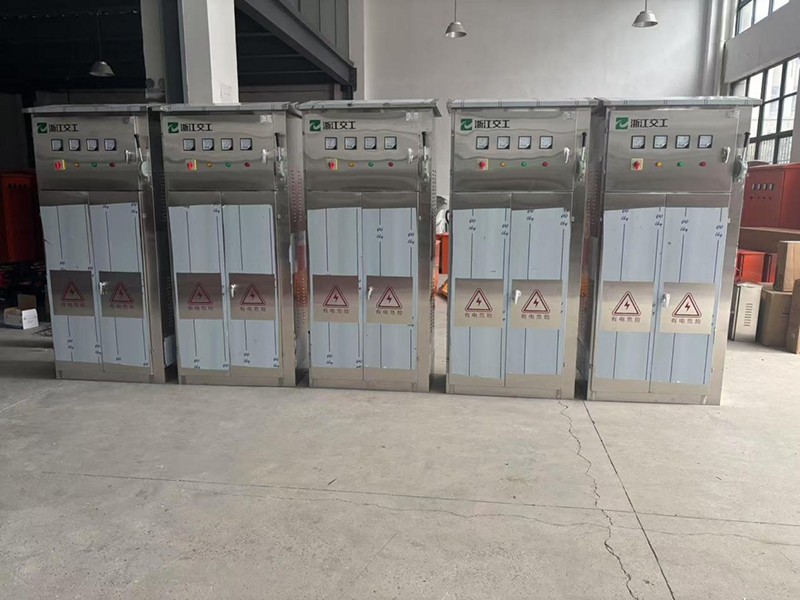

For stainless steel boxes, we use 1.5mm 304 plate. We can brush finish or coat it.
For engineering plastic boxes, we use PC/ABS alloy with impact rating IK10.
The door has a foamed silicone seal and a waterproof lock.

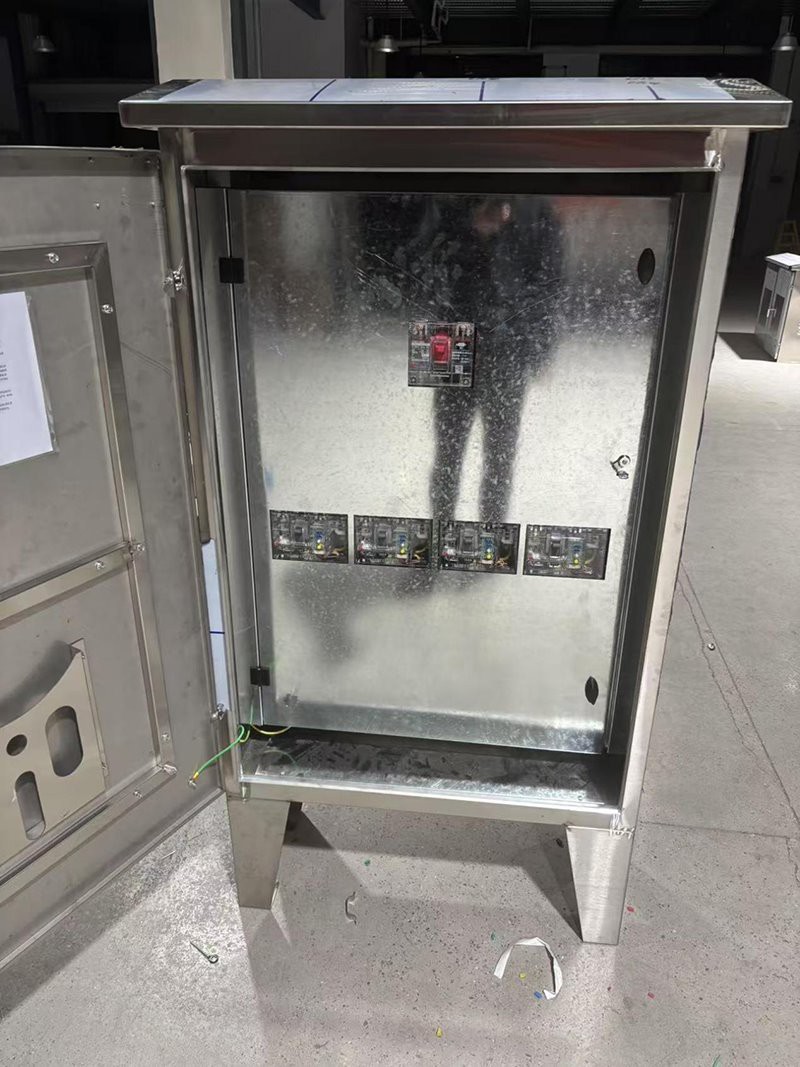

The internal mounting plate is galvanized steel.
Cables enter through waterproof glands with PG or NPT threads.
The top is a rain hood or slanted cover.
Inside, we can add a temperature-controlled fan and a heater to prevent condensation.

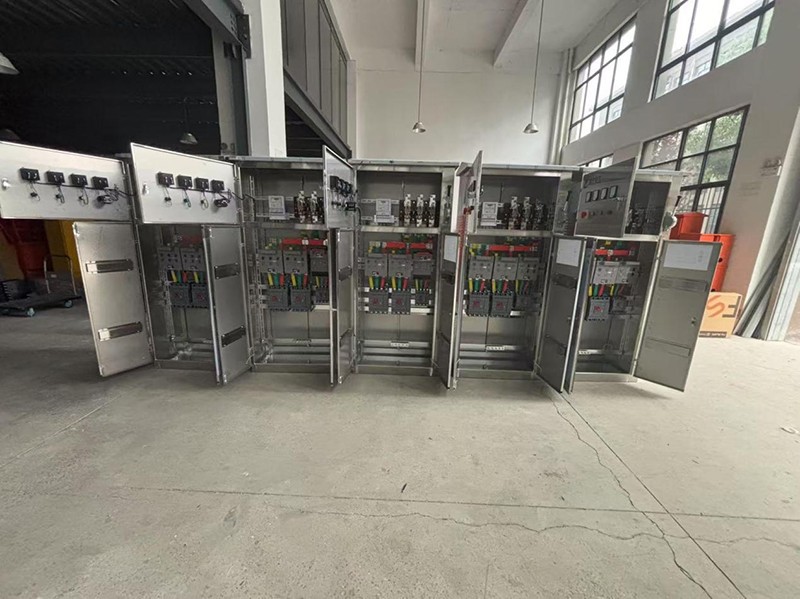

Our factory is 2,000 square meters with ISO9001 certification.

The core features are durability and multi-function.
Stainless steel resists salt spray for ≥500 hours, perfect for coastal areas.
We can integrate a solar charge controller and a battery for off-grid power.
Inside, we can install a 4G DTU for remote data collection.
Box color, size, and number of circuits can all be customized.
This product has CCC and CE certification.
We offer a 5-year anti-rust warranty.
