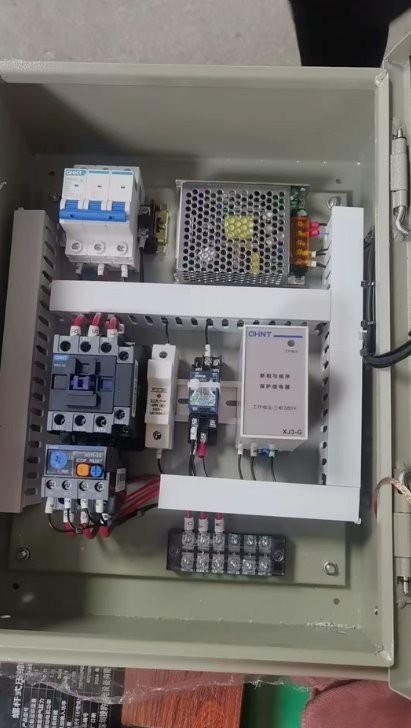

Intelligent Distribution Box

An Intelligent Distribution Box adds a smart gateway, power monitoring modules, and communication modules (4G/WiFi/Ethernet) to a traditional box.
It collects voltage, current, power, energy, temperature, and other data and sends it to the cloud.
Rated current is ≤250A.
Number of circuits is ≤36 positions.
This product meets GB/T 7251.3 and IoT standards.
It is widely used in smart parks, smart buildings, data centers, and EV charging stations.
Smart site and smart building projects of China Railway and China Railway Construction use our Intelligent Distribution Box.

The box uses 1.2mm galvanized steel with coating. We can add a 7-inch touch screen HMI.

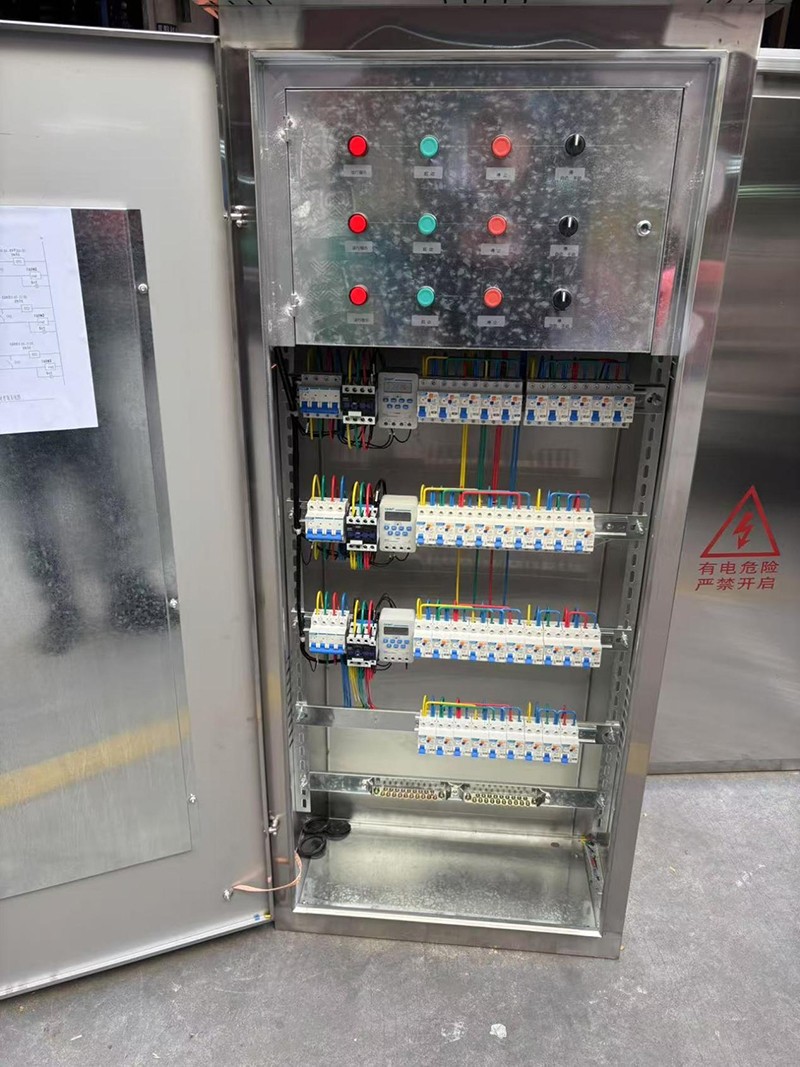

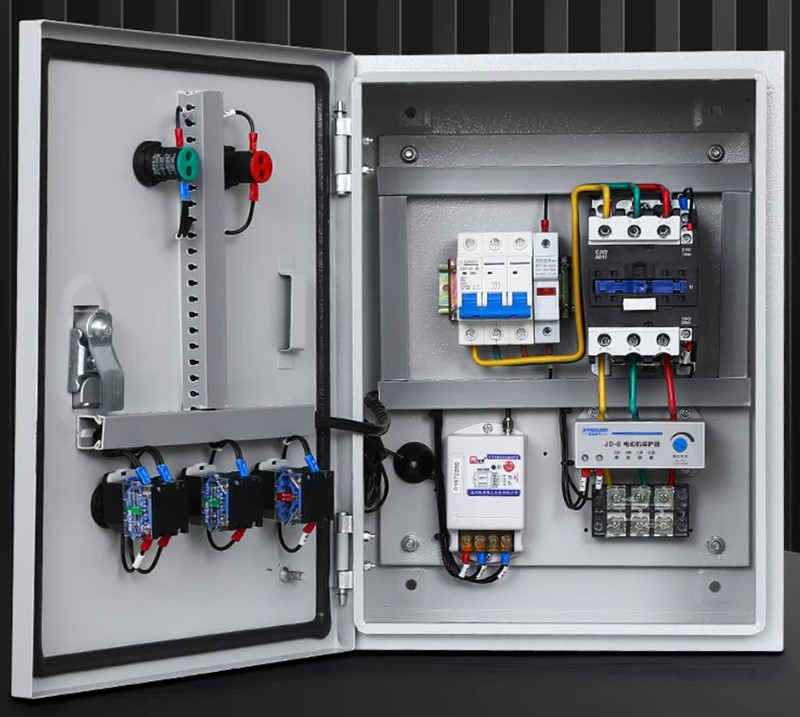

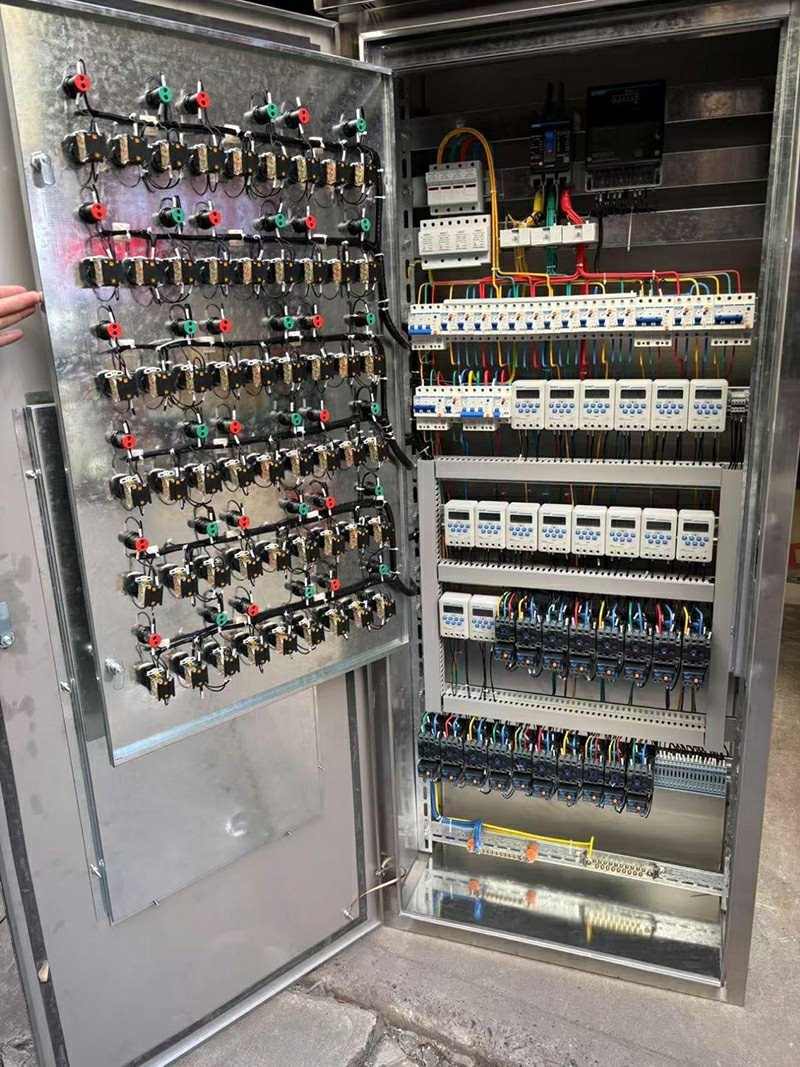

Inside, we install smart breakers (remote on/off) or traditional breakers with smart monitoring modules.
The main incoming has a smart meter with 0.5S accuracy.
Inside, we put temperature and humidity sensors and a smoke sensor.
Communication interfaces support Modbus TCP, MQTT, OPC UA, and other protocols.
Protection rating is IP40.
Our factory is 2,000 square meters with ISO9001 certification.

The advantages are digitalization and energy saving.
You can view real-time power data, history curves, and fault alarms on your phone APP or web portal.
You can set scheduled on/off times and overload warning thresholds.
The system automatically generates energy reports to help you find savings.
We support third-party cloud integration like Alibaba Cloud or Tencent Cloud.
We provide 3 years of free cloud platform use.
