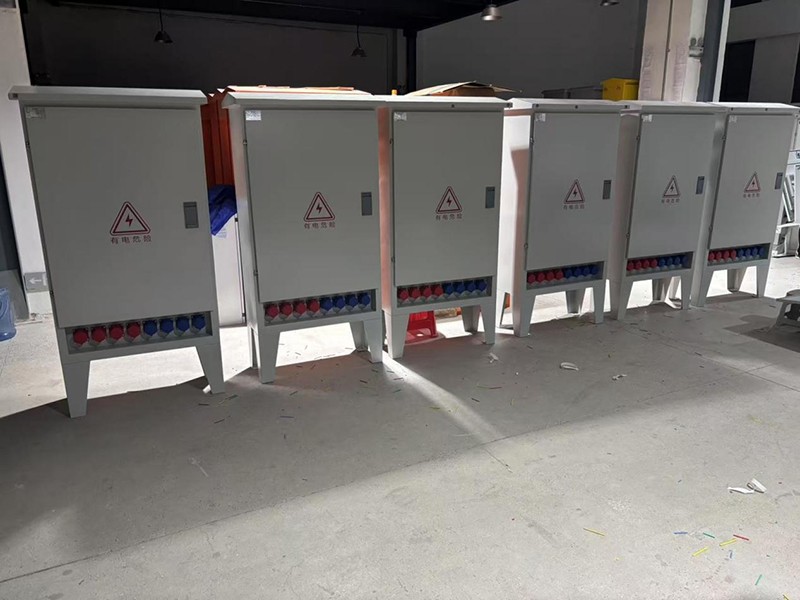

Temporary Low-Voltage Power Box

A Temporary Low-Voltage Power Box is used on building sites, road work, and temporary events that need quick power setup.
Rated current is 63A to 1000A.
Output voltage is 220V/380V.
This product strictly follows JGJ 46-2005.

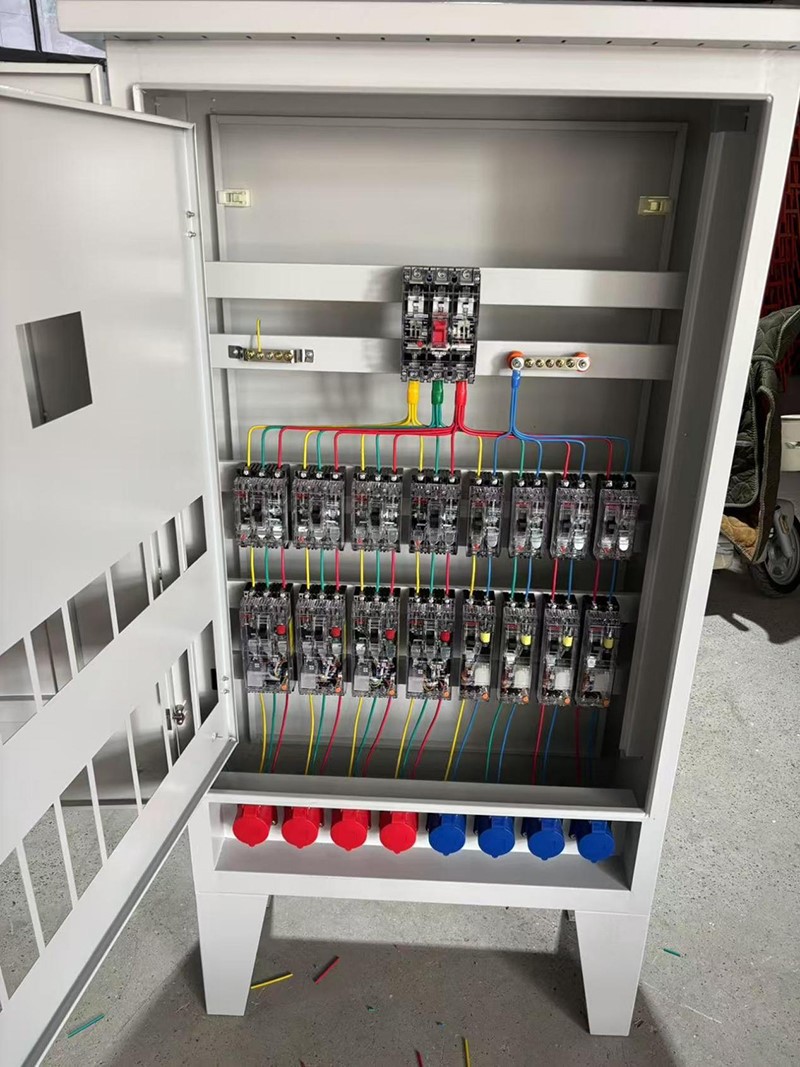

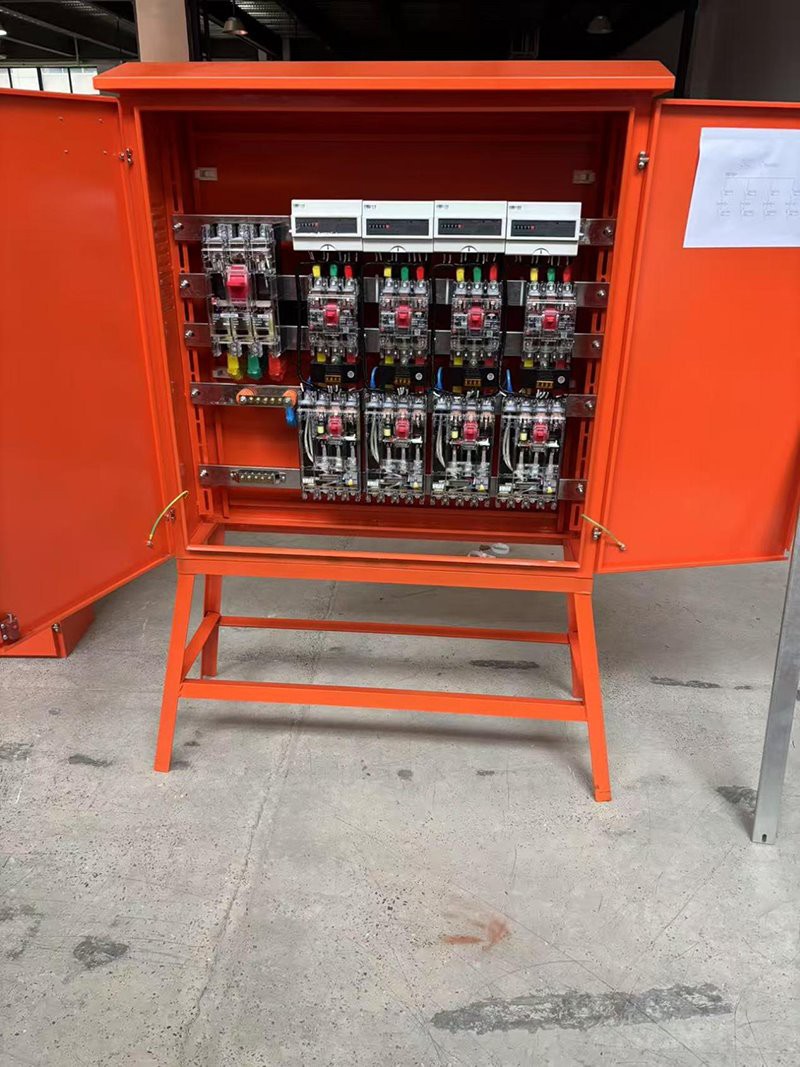

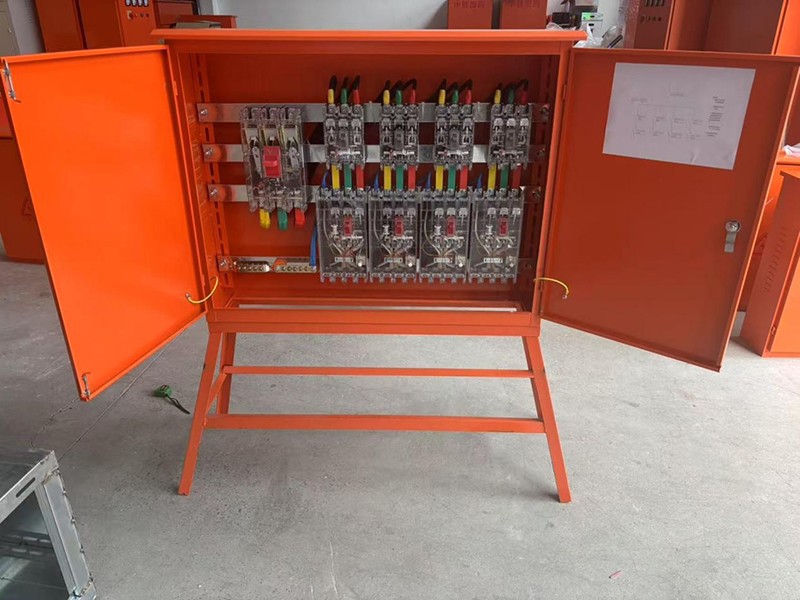

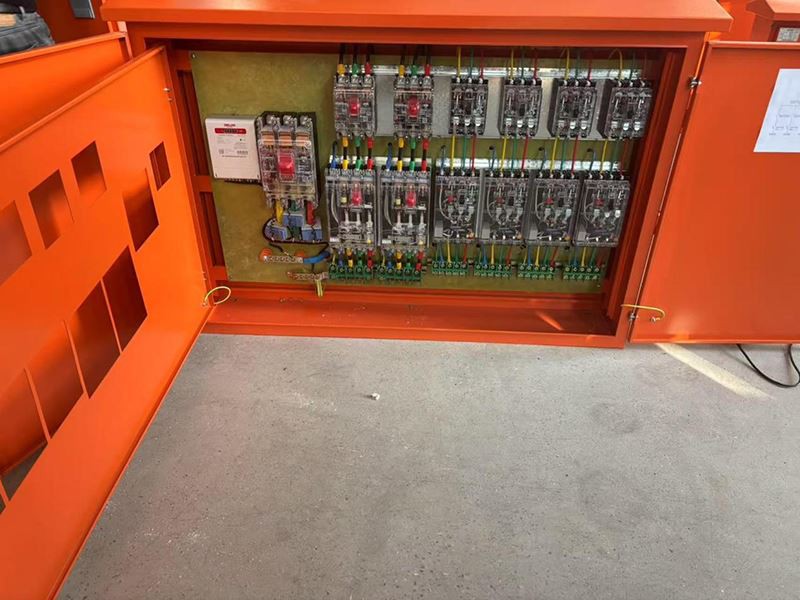

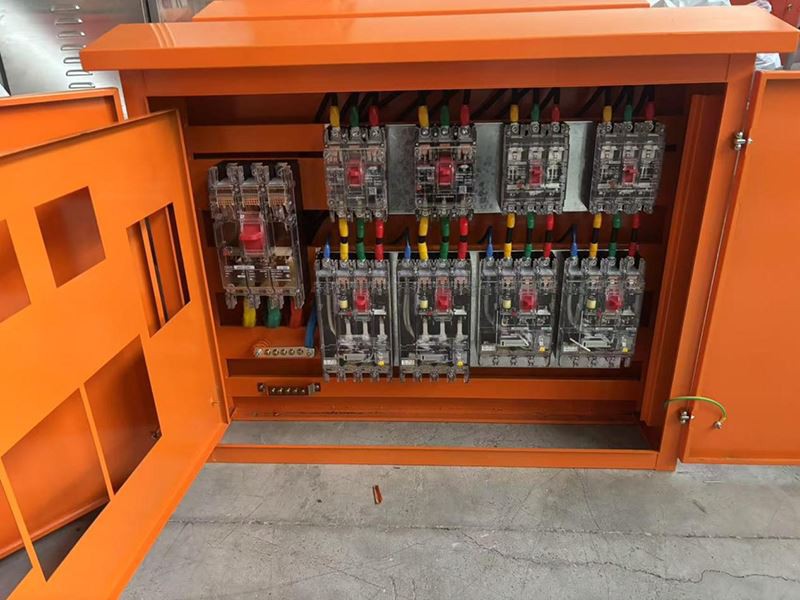

We put a main disconnector, a main leakage protector, and multiple branch leakage protectors.
This gives "three-level distribution, two-level protection."
The box is mobile, with lifting rings, wheels, and a base for easy moving on site.
Large projects of China Railway, China Railway Construction, CCCC, and CSCEC use our Temporary Low-Voltage Power Box.

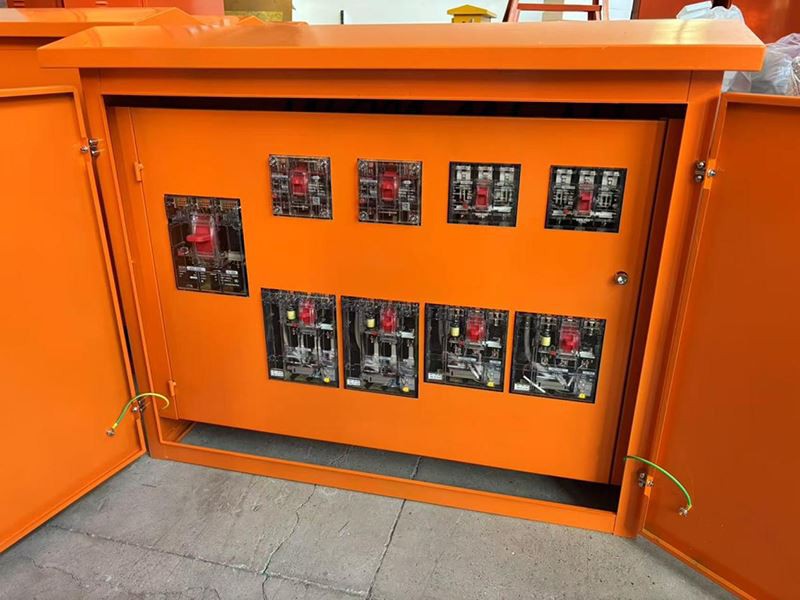

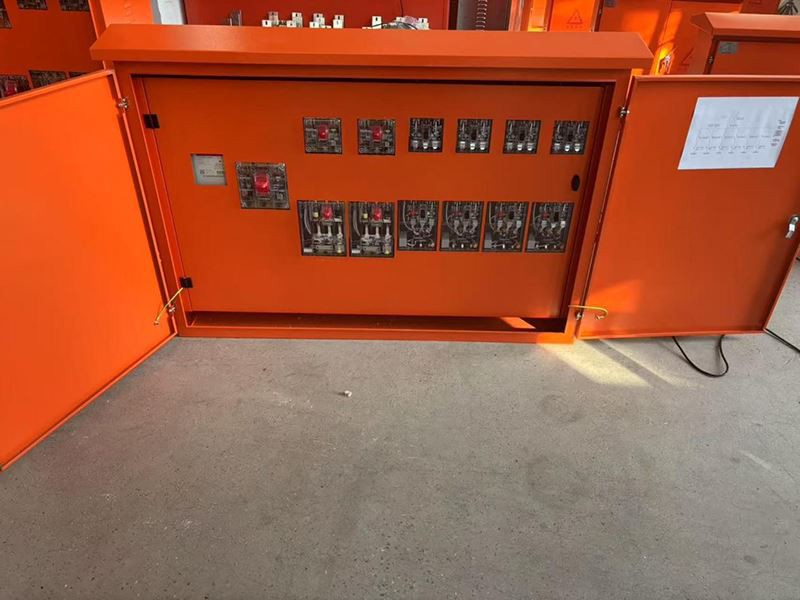

The box uses 1.5mm cold-rolled steel with orange paint for high visibility.
Protection rating is IP44 to IP65.
The door has a rain shield and a sealing strip.
To protect against impacts, we can add a steel wire mesh guard with mesh size ≤25mm.
At the bottom, we put high-strength nylon wheels with brakes and rubber feet.

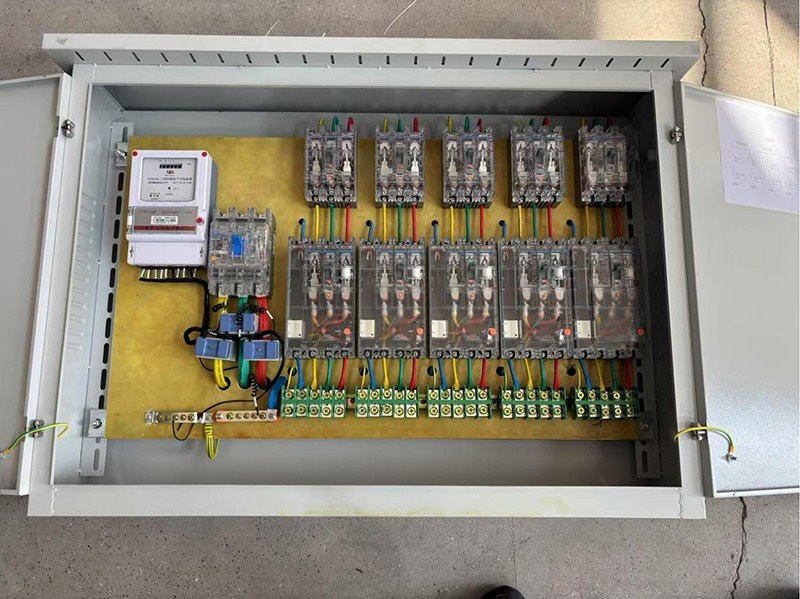

Inside, we use a flame-retardant insulation board, and all switches have transparent protective covers.
Cable entries use waterproof cord grips.
The neutral and ground bars are separate, with a clearly marked ground bolt.
Our factory is 2,000 square meters with ISO9001 certification.

The core advantages are high safety and fast deployment.
The main leakage protector has 100mA to 300mA with a time delay.
The branch leakage protectors have ≤30mA instantaneous trip.
On the front, we install a digital voltmeter that can show phase or line voltage, plus three-color lights for power, run, and fault.
Outside, we put a red emergency stop button. One push cuts all outputs.
We can customize socket types: industrial, Chinese, US, EU, etc.
This product has CCC certification.
